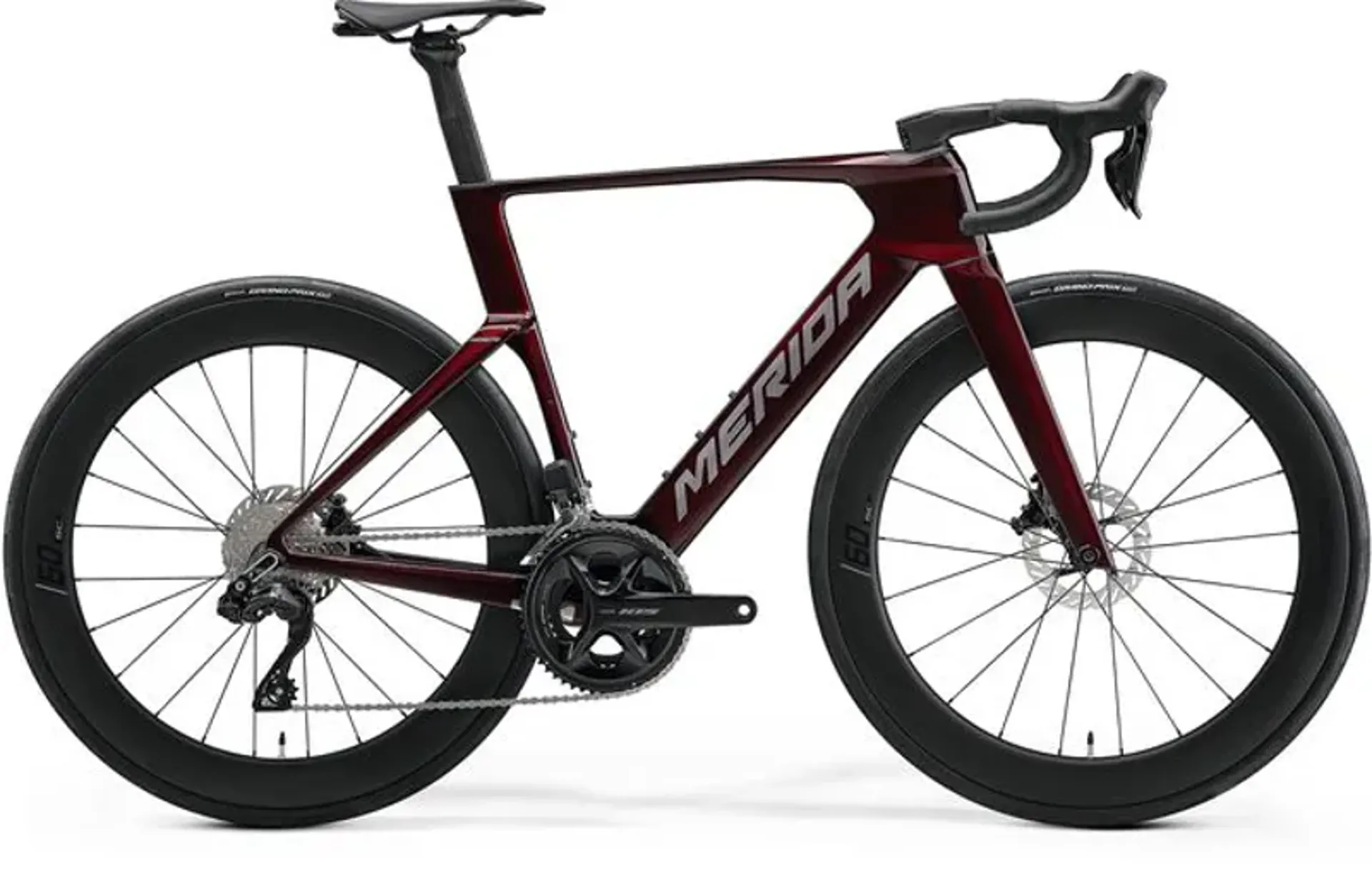

Frame
REACTO CF3 V
-
Material
carbon
-
Max. wheelsize
700x32C
-
Axle standard
100x12/ 142x12mm
-
Bottom bracket standard
BB86,5
-
Frame size
3XS, XXS, XS, S, M, L, XL
-
Color
STARFIELD PURPLE (SLATE GREY)
-
Fork
MERIDA REACTO CF3 V DISC
-
Fork material
carbon
-
Fork max. wheelsize
700x30C
-
Brakes
Shimano 105 Disc
-
Rotors
Shimano CL700 160mm
-
Brake lever
Shimano 105
-
Headset
MERIDA TEAM SL (RCT 608 neck)
-
Handlebar
MERIDA TEAM SL 1P INTEGRATED, material: carbon, 380mm (3S-XXS-XS-S), 400mm (M-L-XL)
-
Handlebar stem
MERIDA TEAM ONE-PIECE INTEGRATED, material: carbon, incl. MERIDA SMART MOUNT, 90mm (3S/XXS/XS), 100mm (S), 110mm (M/L), 120mm (XL)
-
Grip
MERIDA ROAD EXPERT
-
Derailleur (f)
Shimano 105 Di2
-
Derailleur (r)
Shimano 105 Di2
-
Shifters
Shimano 105 disc Di2
-
Seat post
MERIDA REACTO V S-FLEX, Aero Shape, 0mm setback, material: Carbon
-
Seat clamp
MERIDA REACTO V
-
Saddle
Akero RS PAS T2.0, V-mount adapter, incl. MERIDA minitool
-
Chain
Shimano M6100-12
-
Crank
Shimano 105 R7100, 52-36 teeth, 160 mm-3S, 165 mm-XXS/XS, 170 mm-S/M, 172.5 mm-L/XL
-
Freewheel
Shimano 105 R7101, 11-34 teeth, 12 speed
-
Bottom bracket
Shimano SM-BB71-41B Pressfit 86.5
-
Wheelset
Vision SC 60 i23 Disc brake, 100x12mm width front hub, 142x12mm width rear hub, 23mm inner width, 60mm height, Centerlock, material: carbon
-
Tyre front
Continental Grand Prix TR, 700x28C, fold, tubeless ready
-
Tyre rear
Continental Grand Prix TR, 700x28C, fold, tubeless ready
-
Axles
MERIDA EXPERT SL, including removable lever, 6/4mm allen key
-
Approx. weight
8.5 kg (weighed at frame size M)
-
Geometry Tyre Sizes
3XS: 28", XXS: 28", XS: 28", S: 28", M: 28", L: 28", XL: 28"
-
Geometry ST seat tube [mm]
3XS: 440, XXS: 470, XS: 500, S: 520, M: 540, L: 560, XL: 590
-
Geometry TT top tube [mm]
3XS: 506, XXS: 521, XS: 535, S: 545, M: 560, L: 575, XL: 590
-
Geometry CS chain stay length [mm]
410 (All sizes)
-
Geometry HTA head tube angle [°]
3XS: 70,5, XXS: 70,5, XS: 72, S: 72,5, M: 73,5, L: 73,5, XL: 74
-
Geometry STA seat tube angle [°]
3XS: 75,5, XXS: 74,5, XS: 74, S: 74, M: 73,5, L: 73, XL: 73
-
Geometry BD bottom bracket drop [mm]
3XS: 70, XXS: 70, XS: 70, S: 66, M: 66, L: 66, XL: 66
-
Geometry HT head tube [mm]
3XS: 100, XXS: 105, XS: 112, S: 128, M: 140, L: 155, XL: 175
-
Geometry FL fork length [mm]
385 (All sizes)
-
Geometry FO fork offset [mm]
45 (All sizes)
-
Geometry R reach [mm]
3XS: 373, XXS: 377, XS: 384, S: 390, M: 395, L: 400, XL: 409
-
Geometry S stack [mm]
3XS: 512, XXS: 517, XS: 529, S: 542, M: 557, L: 571, XL: 593
-
Geometry WB wheel base [mm]
3XS: 981, XXS: 987, XS: 984, S: 992, M: 992, L: 1002, XL: 1011
-
Geometry SH stand over height [mm]
3XS: 727, XXS: 746, XS: 771, S: 792, M: 810, L: 826, XL: 853
-
Geometry Str Stack To Reach Ratio Pc
3XS: 1,373, XXS: 1,371, XS: 1,378, S: 1,390, M: 1,410, L: 1,428, XL: 1,450
