There's a lot of carbon bar marketing that tells you very little about the bar itself. Thomson take the opposite approach: here's what it's made of, here's how it's built, here's why those decisions matter.

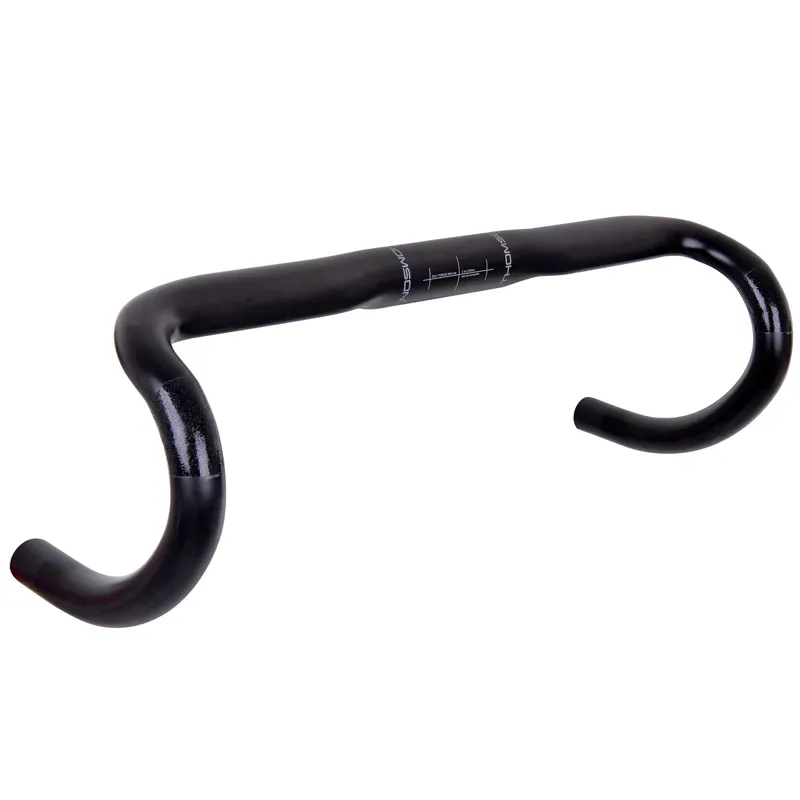

The Thomson Carbon Drop Road Bar is a one-piece construction, which is worth paying attention to. Many carbon bars are made from three sections co-moulded and bonded together.
Thomson mould these over an EPS mandrel rather than an inflatable nylon bladder, which produces a cleaner internal layup without wrinkles in the carbon. That's not a marketing point, it's a structural one.
The carbon itself
The layup combines three different Toray carbon fibre types, each with different tensile strengths and modulus ratings, including high-strength carbon.
Toray supply carbon fibre to Boeing and Airbus, and Thomson use their material alongside a tailor-made Nano Epoxy Resin that gives the bar notably high impact resistance for its weight. Stiffness and compliance are distributed through the bar deliberately, rather than the whole thing being built to one uniform spec.
Certified to EN standards and tested to DIN+.
Shape and fit
The wing section on top is mild by design. Enough to give you a stable platform on the hoods and tops, but not so pronounced that it locks your wrists when you adjust bar angle or shift hand position. That's a common frustration with more aggressive wing profiles, and Thomson have kept the shape practical.
The underside of the wing is shaped to let cable housing sit flush without needing narrow internal channels or routing cut into the bar. Both of those approaches can shorten a bar's lifespan over time, so the external routing solution here is a considered one.
Reach is 78.5 mm across all widths. Drop is proportional to width, running from 137 mm on the 40 cm bar up to 143 mm on the 46 cm, so the geometry scales sensibly rather than staying fixed as the bar gets wider.
The clamp area is wide enough to accommodate aero bar extensions if you're running a time trial or triathlon setup alongside your road position.
Specs
- Widths: 40 cm, 42 cm, 44 cm, 46 cm
- Reach: 78.5 mm
- Drop: 137 mm (40 cm) / 140 mm (42–44 cm) / 143 mm (46 cm), proportional
- Carbon: Toray Triple Carbon blend, three fibre types
- Resin: Nano Epoxy for high impact resistance
- Construction: one-piece, EPS mandrel moulded
- Certification: EN certified, DIN+ tested
- Colour: Black
Who these suit
Riders who want a well-engineered carbon road bar without the inflated claims. The Thomson Carbon Drop bars work particularly well on performance road bikes where you want predictable stiffness underhand, a clean cable run, and a shape that doesn't fight you when you move around on the bar.
If you're building up a road bike and want to get the cockpit right without revisiting it in six months, these are worth the investment.
