Frame
6061 alloy, hydroformed T6 aluminium, multi-butted, tapered head tube, internal cable routing and custom Whyte dropouts

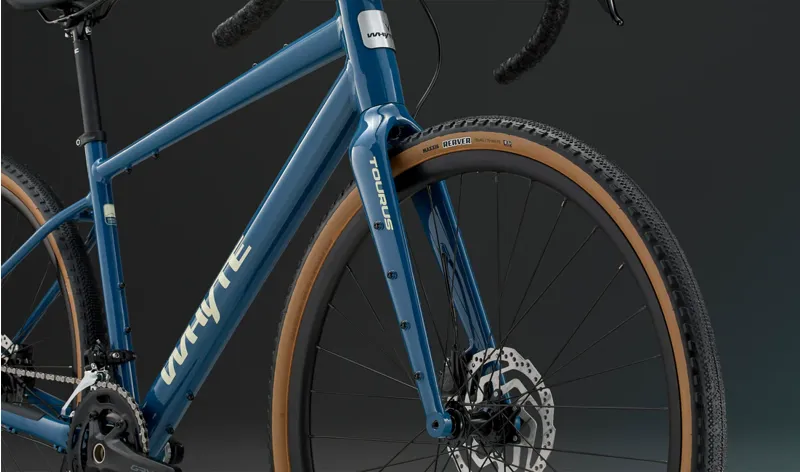

Fork
Whyte straight bladed 6061 alloy, alloy tapered steerer, internal cable routing, 12mm thru-axle, flat mount with mudguard and mounting bosses
Headset
No. 69 SRS, 1-1/8in upper and 1.5in lower with sealed cartridge bearings and front entry for cables
Rear Hub
Alloy, Double Sealed Cartridge Bearings, 12mm x 142mm Thru Axle, Centre-Lock, 32 Hole
Front Hub
Alloy, double sealed cartridge bearings, 12mm x 142mm thru axle, Center-Lock, 32 hole
Spokes
2.0mm, PG, black stainless, brass nipples
Rims
23mm internal width, tubeless ready, 32 hole
Tyres
Maxxis Reaver Tanwall 700 x 45c, EXO wire bead
Shift Levers
Shimano GRX ST-RX400, 10 Speed
Front Mech
Shimano GRX RD-RX400, 10 Speed

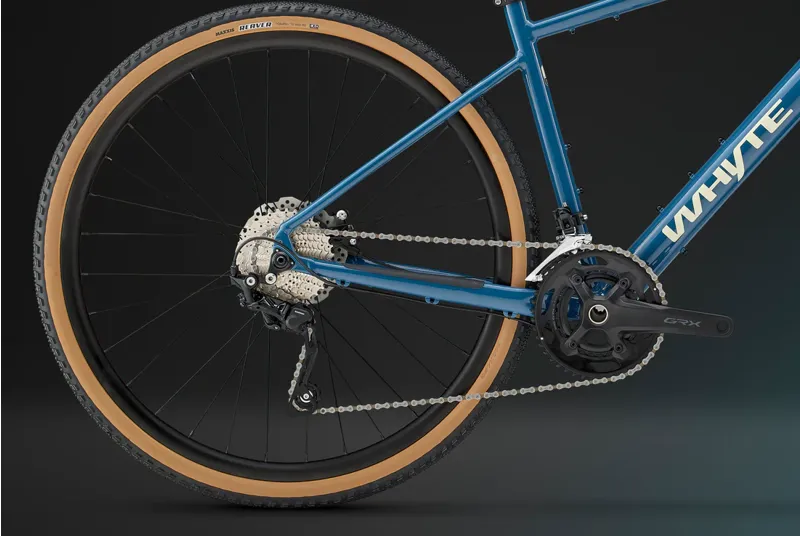

Rear Mech
Shimano GRX RD-RX400, Shadow Plus, 10 Speed
Cassette
Shimano CS-HG500, 11-34T, 10 speed
Chain
Shimano CN-HG54
Crankset
Shimano FC-RX600, 170mm length (size XS and S), 172.5mm (size M, L and XL), 46-30T chainring
Bottom Bracket
Shimano SM-BB52, 68/73mm
Seatpost
Whyte 6061 Alloy, 20mm offset, 27.2mm x 350mm, two-bolt clamp
Saddle
Whyte Custom
Handlebar
Whyte, 6061 alloy, 70mm reach, 120mm drop, 10° flare 31.8mm x 400mm (sizes XS + S), 420mm (size M), 440mm (size L), 460mm (size XL)
Stem
Whyte Alloy, +-7° rise, 60mm length (size XS + S), 70mm (sizes M, L, + XL)
Grips
Whyte anti-slip, ‘cross bar tape
Front Brakes
Shimano GRX BR-RX400, Flat Mount, internal routing, 180mm rotor
Rear Brakes
Shimano GRX BR-RX400, Flat Mount, internal routing, 160mm rotor
Brake Levers
Shimano GRX ST-RX600, hydraulic
Pedals
Fibre reinforced composite platform
