Merida Mission 4000 carbon gravel race bike features flared bars and stable CF4 geometry. Built for fast off-road performance. Take yours.
Merida Mission 4000 carbon gravel race bike features flared bars and stable CF4 geometry. Built for fast off-road performance. Take yours.
Merida

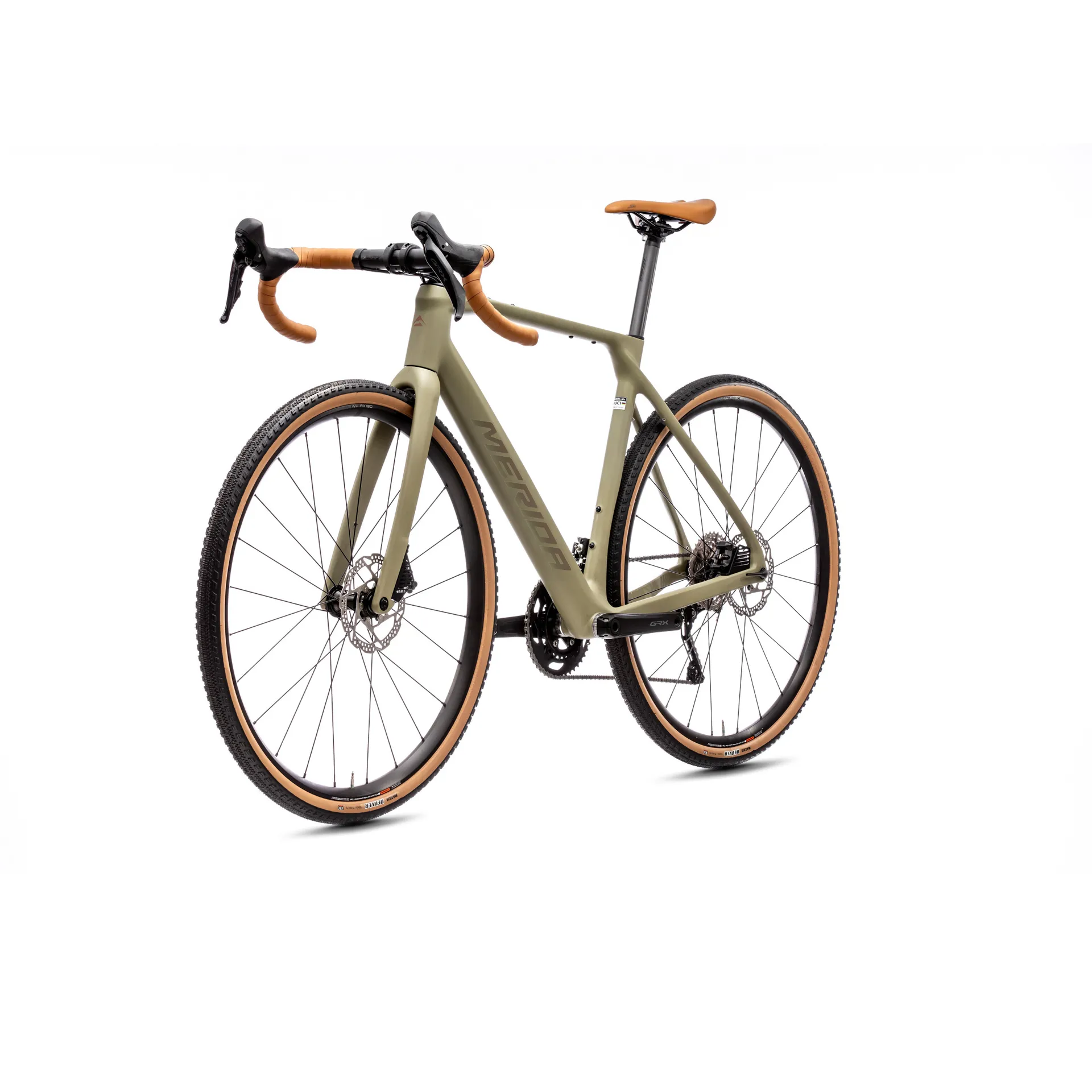

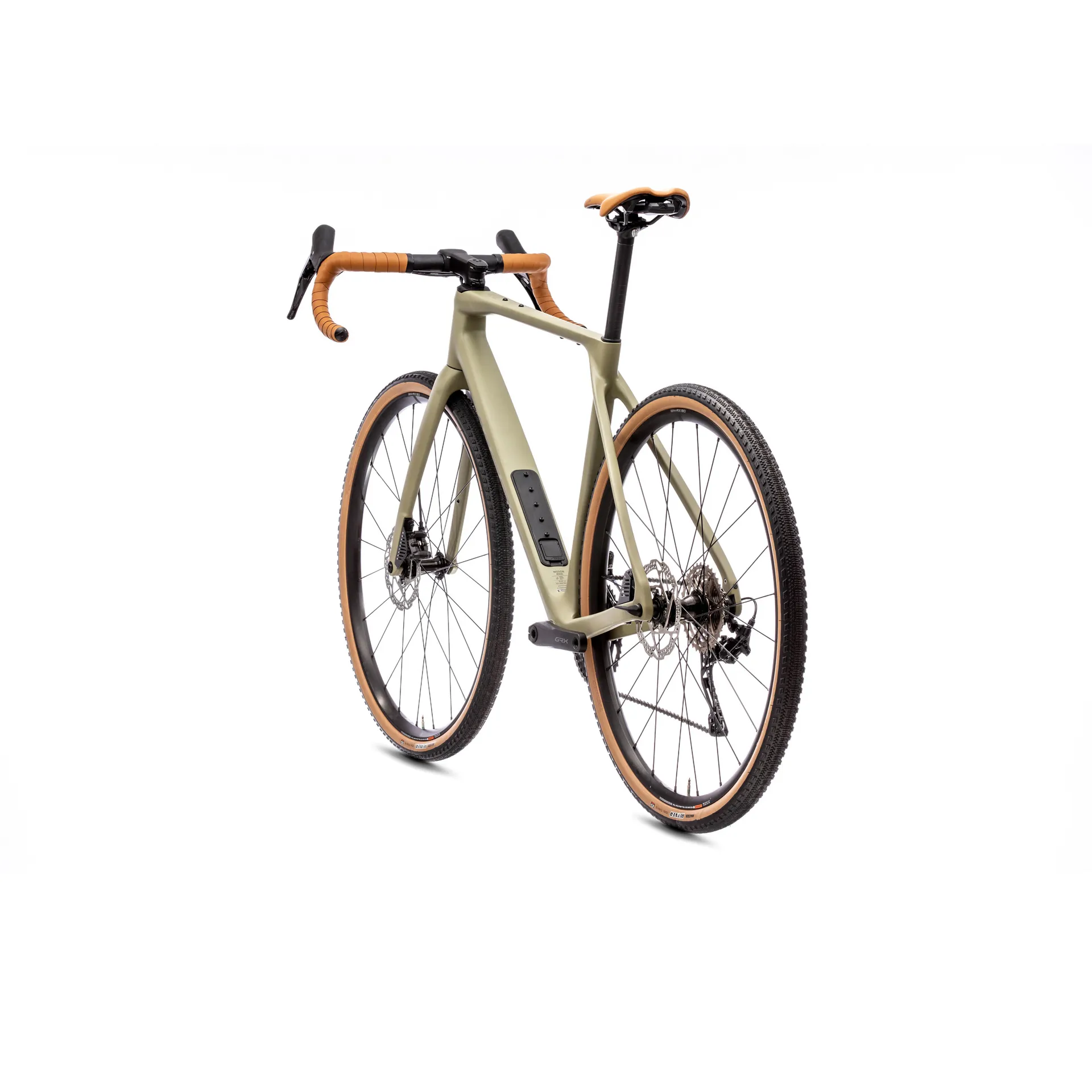

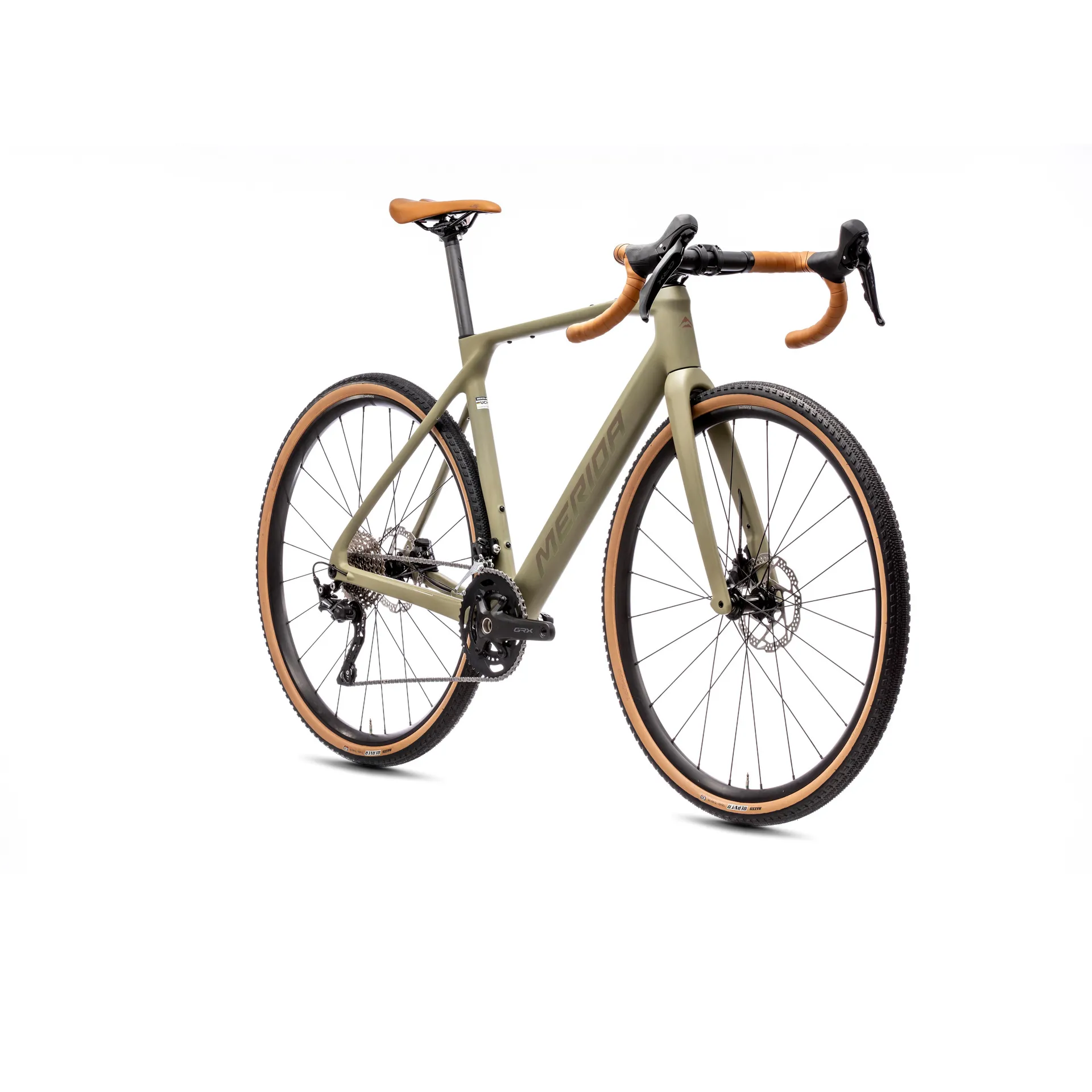

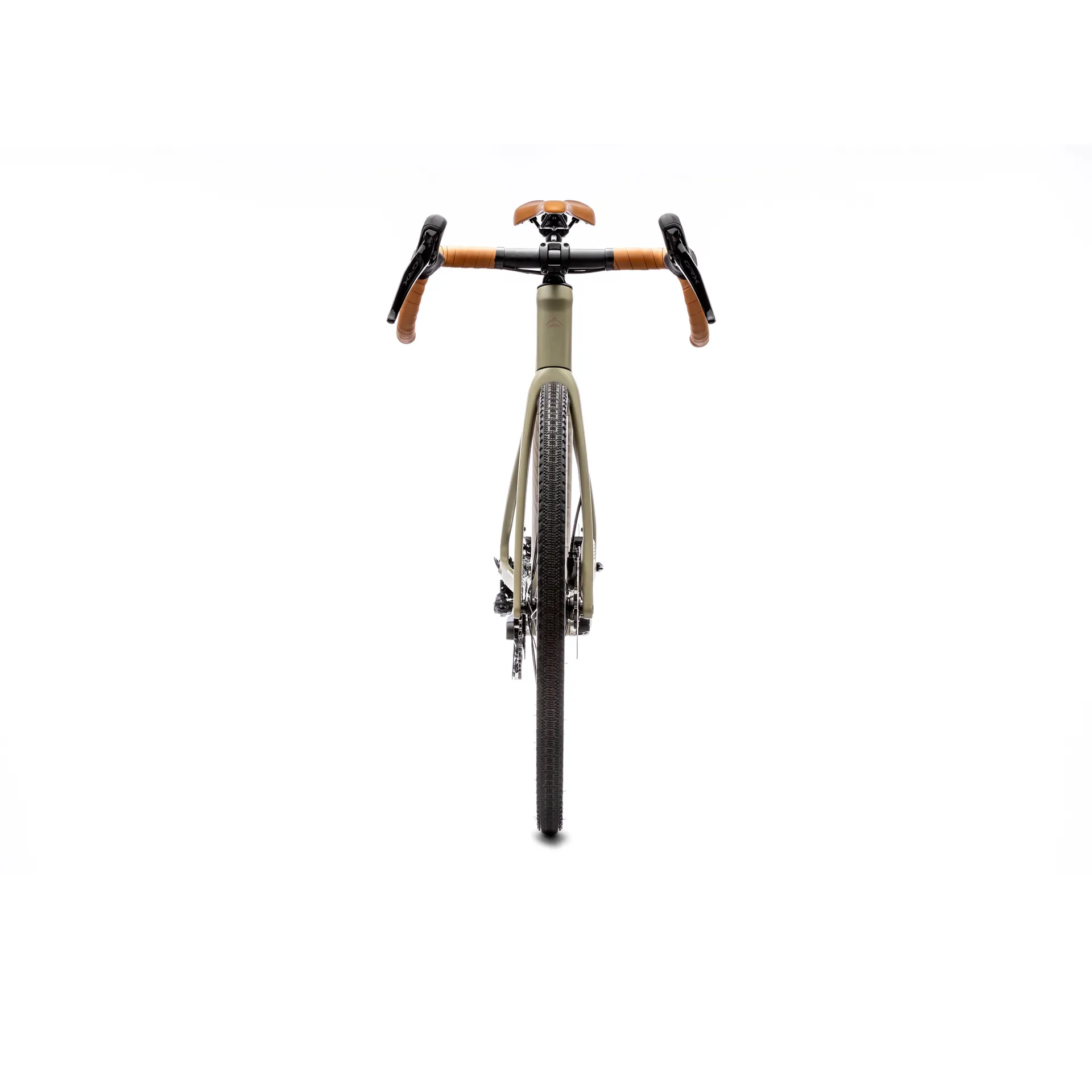

Merida Mission 4000 2026 Gravel Bike in Silk Low Key Green

£2,250.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Merida Mission 4000 2026 Gravel Bike in Silk Low Key Green

Season:2026

Brand:Merida

Code:P-R538

Fast, capable and composed. The entry-level carbon Mission 4000 is designed for the high-speed, high-stakes world of gravel racing and is based on our latest CF4 carbon fibre gravel race frame. Add high-volume, fast-rolling, off-road-tough gravel tyres, Shimano's proven GRX groupset, Shimano wheels, and a flared handlebar to maximise control on rough tracks, and you have the perfect mix of low weight, sharp but stable handling, and comfort — ideal for fast-paced gravel rides or rough road routes.

Our new Mission truly embodies its ‘fast on any surface’ intentions. It's a gravel race bike that takes key geometry and frame elements from the Scultura Endurance and Silex and adds road racing DNA to deliver a fast and responsive ride on pretty much any surface.

From fast-paced gravel races to tarmac-based chaingang outings, the Mission delivers. Up to 40 mm tyre clearance offers scope for wider gravel racing tyres or large volume road tyres, and its low weight (Mission 10K is around 7.6 kg) makes it fly up the hills.

The Mission’s built-in storage compartment (G.U.T.) improves the accessibility and organisation of crucial mid-race nutrition and spares, further enhancing the efficiency when every second counts. The ability to seamlessly fit 1x or 2x drivetrains offers riders the flexibility to find their preferred set-up fo riding or racing.

Features

  • Lightweight CF4 carbon frame with gravel race-orientated geometry
  • Wide-range Shimano GRX 400 2x10-speed groupset
  • Shimano WH-RX-180 wheelset
  • Down tube storage trunk with Fidlock cover for race nutrition and spares
  • Fast rolling Maxxis Receptor 40 mm tyres
  • Hydraulic Shimano disc brakes for effective stopping power
Technical Information
  • Frame
    CF4 II; carbon; 100 x12mm / 142 x 12mm axle standard; BSA bb standard; max. tyre size -700x40C
  • Fork
    Mission CF4 II; Tapered; material: carbon; 700x45C max. tyre size
  • Shifters
    Front: Shimano GRX 400; disc, Rear: Shimano GRX 400; disc
  • Front Derailleur
    Shimano GRX400
  • Rear Derailleur
    Shimano GRX400
  • Bottom Bracket
    attached
  • Chain
    KMC X10
  • Chainset
    Shimano GRX600; 46-30 tooth chainset; Crank length: (XXS-XS) - 165mm, (S-M) - 170mm, (L-XL) - 172.5mm
  • Cassette
    Shimano CS-HG50; 11-36 teeth; 10 speed
  • Brake Lever
    Shimano GRX 410
  • Front Brake
    Shimano GRX400; Hydraulic disc with Shimano RT54; 160mm
  • Rear Brake
    Shimano GRX400; Hydraulic disc with Shimano RT54; 160mm
  • Grip
    Merida Road Comp
  • Handlebar
    Merida Expert GRII; material: aluminium; (XS-S) - 400mm wide, M - 420mm wide, (L-XL) - 440mm wide
  • Stem
    Merida Team CC III; material: aluminium; 31.8 mm diameter; -6 degree rise; Length: (XXS-S) - 90mm, M - 100mm, (L-XL) - 110mm
  • Headset
    Acros ICR Merida External neck w/diecast splitring
  • Pedals
    included
  • SAddle
    Merida Comp SL; 22% recycled material; V-mount
  • Seatpost
    Merida Expert SL; 27.2mm diameter; in-line; material: carbon
  • Rims
    Shimano WH-RX180-700C; CL; 100x12mm; 142x12mm; 25mm inner rim width; 25mm rim depth; Centerlock; material: aluminium
  • Spokes
    Part of wheelset - Shimano WH-RX180-700C
  • Front Hub
    Part of wheelset - Shimano WH-RX180-700C
  • Rear Hub
    Part of wheelest - Shimano WH-RX180-700C
  • Front Tyre
    Maxxis Receptor; 700x40C; Wire; EXO
  • Rear Tyre
    Maxxis Receptor; 700x40C; Wire; EXO
