Frame

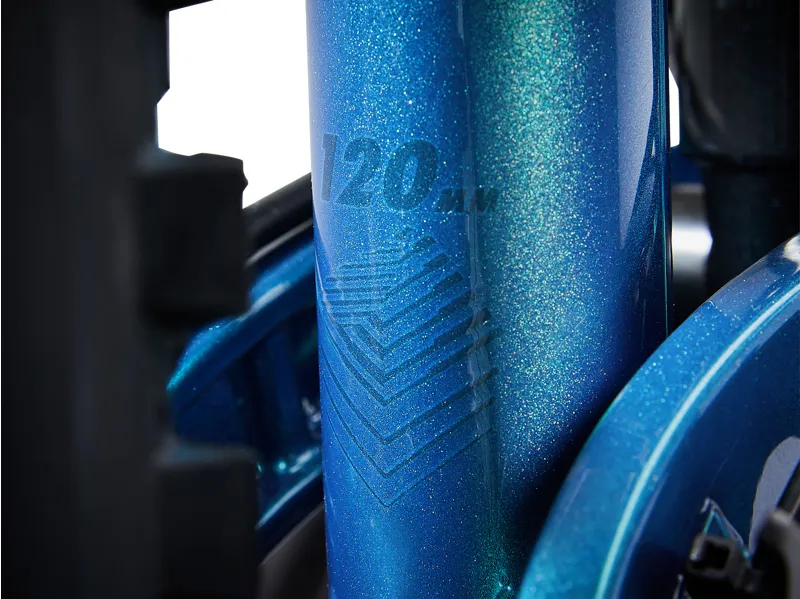

ALUXX-grade aluminium, 120mm FlexPoint Suspension
Fork
Giant STL 34, 140mm, Boost 15x110
Shock
Suntour Raidon R, 184x44, custom tuned for Liv
Handlebar
Giant Contact TR35, 20mm rise, alloy 27.5": XS: 730mm, S: 750mm 29": M: 750mm, L: 780mm
Grips
Giant Sole-O
Stem
Giant Contact, 35mm 27.5": XS: 40mm, S: 50mm 29": M: 50mm, L: 60mm
Seatpost
Giant Contact Switch dropper, remote 27.5": XS: 75mm travel / 30.9 x 295mm S: 100mm travel / 30.9 x 345mm 29": M: 125mm travel / 30.9 x 395mm L: 125mm travel / 30.9 x 345mm
Saddle
Liv Sylvia
Pedals
Included
Shifters
Shimano CUES SL-6000, 1x10
Front Derailleur
N/A
Rear Derailleur
Shimano CUES RD-U6000, Shadow +
Brakes
Shimano BR-MT200, hydraulic, Shimano RT-26 rotors [F]180mm, [R]180mm
Brake Levers
Shimano BL-MT201
Cassette
Shimano CUES CS-LG300, 11x48
Chain
Shimano CUES LG500
Crankset
Shimano CUES, FC-U6000-1, 30t 27.5": XS: 170mm, S: 170mm 29": M: 170mm, L: 170mm
Bottom Bracket
Shimano BB MT501, press fit
Rims
27.5": Giant AM 27.5, tubeless ready, sleeve-joint rim, 30mm inner width 29": Giant AM 29, tubeless ready, sleeve-joint rim, 30mm inner width
Hubs
Giant Tracker Performance Boost 15x110, sealed bearing [R] Giant Tracker Giant Sport 148x12
Spokes
Sapim
Tyres
27.5": [F] Maxxis Minion DHF 27.5x2.6, EXO, TR, tubeless [R] Maxxis Dissector 27.5x2.6, EXO, TR, tubeless 29": [F] Maxxis Minion DHF 29x2.5 WT, EXO, TR, tubeless [R] Maxxis Dissector 29x2.4 WT, EXO, TR, tubeless
Exrtas
Factory tubeless set up
Max Tyre Clearance
2.6"
