Whyte Bikes

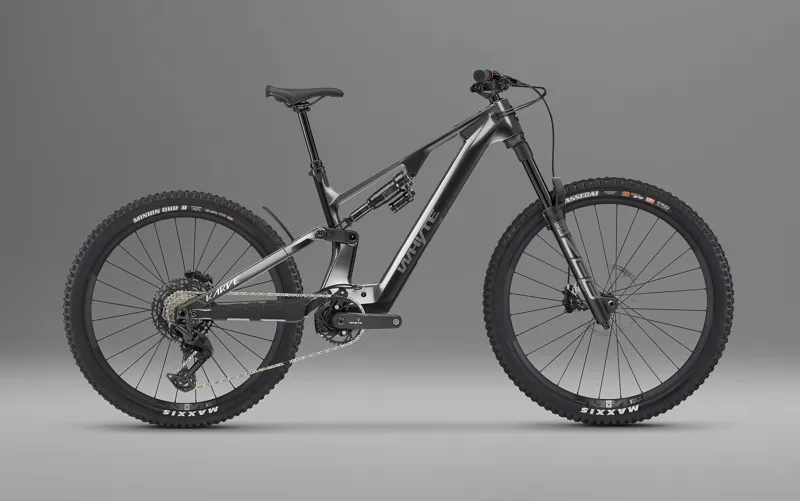

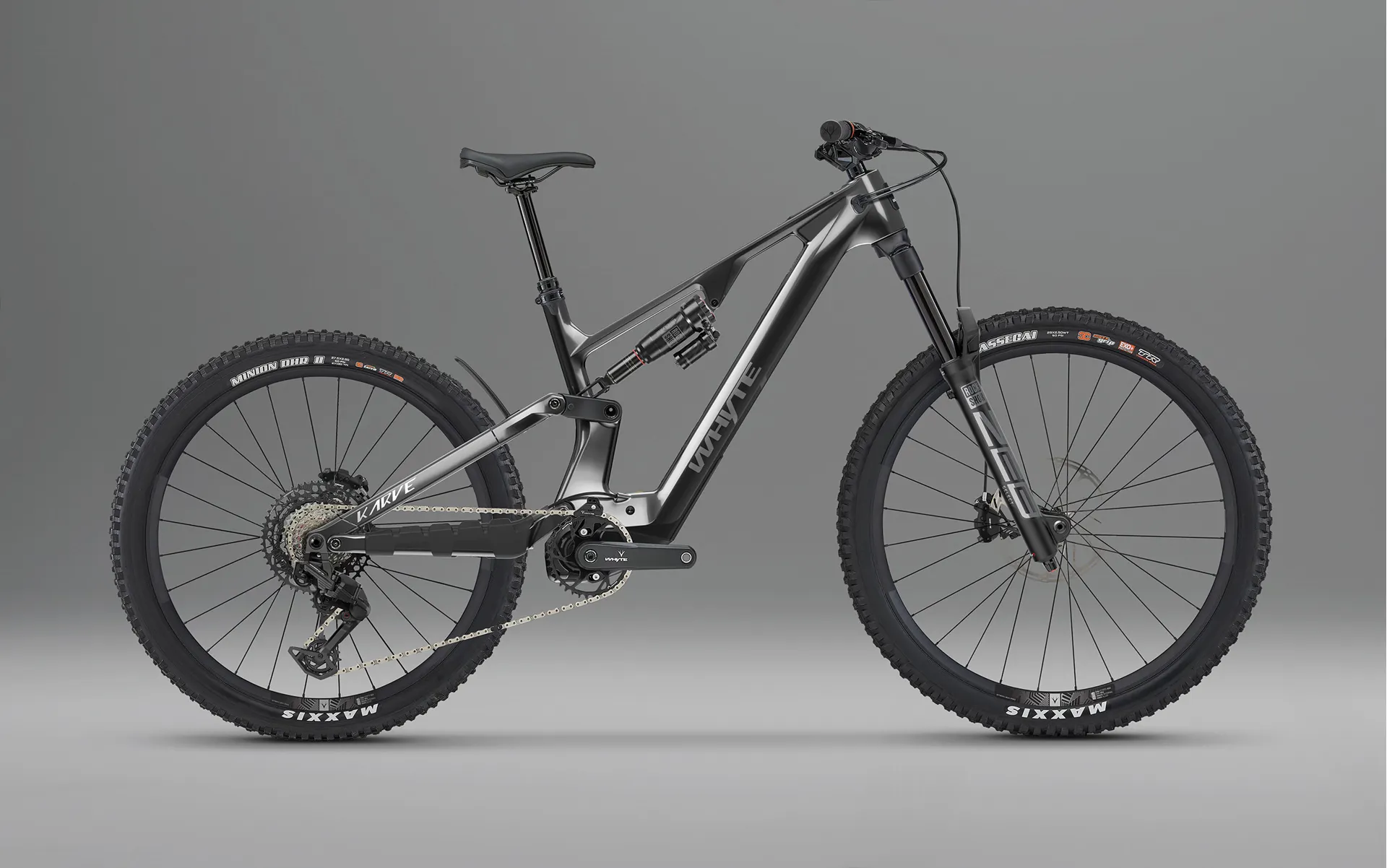

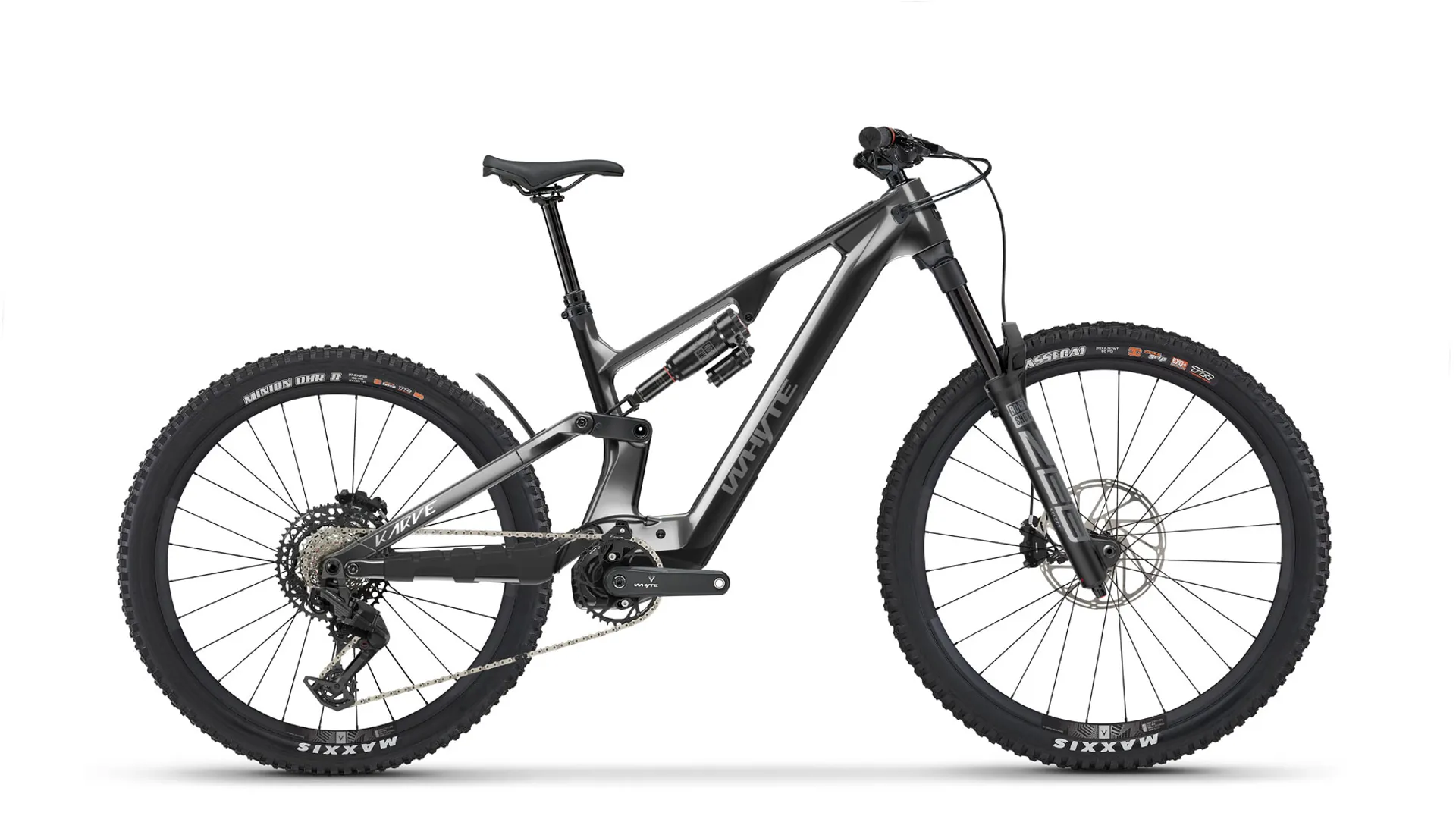

Whyte Karve EVO RS V1 Electric Mountain Bike in Gun metal

£5,650.00
Size Guide
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Whyte Karve EVO RS V1 Electric Mountain Bike in Gun metal

Season:2027

Brand:Whyte Bikes

Code:WEKAREVORSGM

Extreme exhilaration, exceptional performance

Our most affordable gravity thrill machine. With the power of Avinox inside.

Designed, developed and proven on the toughest UK terrain and conditions, Karve EVO is made for gravity thrill seekers, self-shuttlers, bike-park senders, and big mountain riders looking for the biggest thrills and the very best descending and self-shuttle performance possible.

Features

  • 180mm front + 180mm rear of Whyte custom-tuned suspension travel
  • Uni-directional carbon fibre front triangle with 6061 T6 aluminium rear triangle frame + proportional sizing for perfect fit across every size + geometry adjustment + full weatherproofing
  • Avinox's very latest M2S full-torque (up to 150Nm), full-power (1300W peak) motor system
  • 800Wh internal battery
  • 29in front + 27/5in rear MX (mixed)/‘mullet’ wheels (ready to be converted to 29er front + rear)
  • Adjustable travel full-insertion dropper posts (with frame size size-specific drops)
  • Dressed in carefully selected, trail-proven, high-performing components
  • All bikes come with Ride Wrap
Technical Information
  • Frame
    Uni-directional carbon mainframe, ZS56 top and bottom head tube, internal cable routing, 6061 Alloy swing arm, Shape.it Link V2 and 12mm x 148mm Boost dropouts
  • Fork
    RockShox ZEB Select, 180mm travel, 44mm offset, Linear XL, Delta RC damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost, Maxle stealth
  • Rear shock
    RockShox Super Deluxe Select RT, DebonAir, Fast Black coating, adjustable rebound, 230 x 62.5mm, custom tuned for Whyte
  • Headset
    ZS56 upper / lower headset cups for 1 1/18in upper and 1.5in lower with sealed bearings
  • Rear hub
    Alloy, e-bike specific, double sealed cartridge bearings, 12mm x 148mm Boost spacing, nine degree micro engagement four pawl, 32 hole, HG freehub
  • Front hub
    Alloy, double sealed cartridge bearings, 12mm x 100mm thru axle, 32 hole
  • Spokes
    14g stainless black, brass nipples
  • Rims
    Whyte eMTB sleeved rims, 30mm internal width, tubeless ready, 29" front, 27.5" rear
  • Tyres
    Maxxis Assegai WT 29 x 2.5in EXO+ 3C MaxxGrip (front). Maxxis Minion DHR II WT 27.5 x 2.5in Double Down 3C MaxxTerra, (rear)
  • Shift levers
    SRAM Eagle 90, 12 speed
  • Rear mech
    SRAM Eagle 70 T-Type mechanical, 12 speed
  • Cassette
    SRAM XS 1270, T-Type, 10-52T, 12 speed
  • Chain
    SRAM Eagle 70, 12 speed
  • Crankset
    Whyte 155mm long ISIS crank arms, SRAM direct mount, 36T chainring, T-Type
  • Seatpost
    TranzX +RAD adjustable dropper post, 34.9mm, frame size specific drop (size S 150mm drop; size M 170mm drop; sizes L-XL 200mm drop)
  • Seat
    Whyte Custom
  • Bar
    Whyte Custom 7050 alloy, 40mm rise, 35mm bar bore, 800mm wide
  • Stem
    Whyte, 35mm extension, 35mm bar bore
  • Grips
    Whyte Enduro lock-on
  • Front brakes
    SRAM Maven Base hydraulic disc brake, four piston, sintered metal pads, 220mm six bolt Centreline rotors
  • Rear brakes
    SRAM Maven Base hydraulic disc brake, four piston, sintered metal pads, 200mm six bolt Centreline rotors
  • Brakes levers
    SRAM Maven Base
  • eBike motor
    Avinox M2S drive unit with 150Nm maximum torque, 1300W of peak power and 250W of nominal power. Five power mode settings including Auto and Boost.
  • eBike display
    Avinox DPC100 OLED display mounted within the top tube. Discrete bar mounted wireless controller.
  • eBike battery
    Avinox 800Wh fixed battery
  • eBike battery charger
    Charger 4A (230V)
Sizing Information
