Frame
6061 alloy, hydroformed T6 aluminium, multi-butted, custom drawn, tapered headtube, internal cable routing, Shape.it Link V2 and 12mm x 148mm Boost dropouts
Fork
RockShox ZEB Select, 160mm travel, 44mm offset, DebonAir, Charger RC damper, Fast Black coating, tapered steerer, 110mm x 15mm Boost, Maxle stealth
Shock
RockShox Deluxe Select R, DebonAir, Fast Black coating, adjustable rebound, custom tuned for Whyte
Headset
Token TK19506 1/8in upper and 1.5in lower with sealed bearings
Rear Hub
Alloy, e-bike specific, double sealed cartridge bearings, 12mm x 148mm Boost spacing, nine degree micro engagement four pawl, 32 hole
Front Hub
Alloy, double sealed cartridge bearings, 12mm x 100mm thru-axle, 32 hole
Spokes
14g stainless black, brass nipples
Rims
WTB ST Tough front rim, WTB HTZ Trail rear rim, 30mm internal
Tyres
Maxxis Assegai WT, TR, 29in x 2.5in 120TPI, EXO+ sidewall protection, 3C MaxxGrip, Dual Compound, folding bead, front; Maxxis Minion DHR 2 WT, TR, 29in x 2.4in 120TPI, Double Down casing, 3C MaxxTerra, dual compound, rear
Shift Levers
SRAM Eagle 70, 12 speed

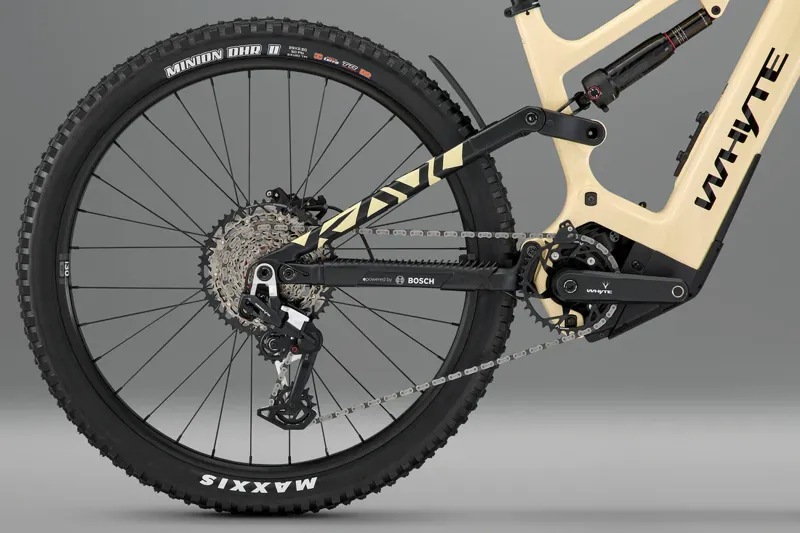

Rear Mech
SRAM Eagle 90 T-Type mechanical, 12 speed
Cassette
SRAM XS 1270, T-Type, 10-52T, 12 speed
Chain
SRAM Eagle 70
Crankset
Whyte 155mm ISIS arms, SRAM direct mount 36T chainring, T-Type
Seatpost
TranzX +RAD 34.9mm, adjustable, size-specific drop (size S: 150mm travel; size M: 170mm travel; sizes L/XL: 200mm travel)
Saddle
Whyte Custom
Handlebar
Whyte Custom 6061 alloy, 30mm rise, 35mm bar bore, 800mm wide
Stem
Whyte, 35mm Extension, 35mm Bar Bore
Grips
Whyte Enduro lock-on
Front Brakes
SRAM DB8 Stealth, four piston with sintered metal pads, 220mm six bolt Centreline rotors
Rear Brakes
SRAM DB8 Stealth, four piston with sintered metal pads, 200mm six bolt Centreline rotors
Brake Levers
SRAM DB8 Stealth
Pedals
Fibre reinforced composite platform
Drive Unit
Bosch Performance Line CX (Smart System) Drive Unit with 85Nm maximum torque, 600W of peak power and 250W of nominal power. Features four power mode settings including Tour+ and eMTB.
Battery
Bosch PowerTube 800Wh, perfectly integrated into the frame with an intuitive lockable mechanism for easy removal. PowerMore compatible.
Display
Bosch System controller mounted within the top tube, paired with the discrete bar mounted Mini Remote. Also connects to the Bosch eBike Flow smartphone app to give you even more insight and control at your fingertips.
Charger
Charger 2A (230V)
