Motor
All new Specialized 3.1 motor, 101Nm torque, 666W power
-
Battery
840Wh battery
-
Charger
Specialized 4amp charger
-
Frame
All new Levo 4 frame, FACT 11m carbon chassis and rear-end, 12x148mm dropouts, sealed cartridge bearing pivots, SRAM UDH compatible, with SWAT storage, 150mm of travel, side entry battery, fork travel up to 180mm
-
Seat Binder
Alloy, 38.6mm
-

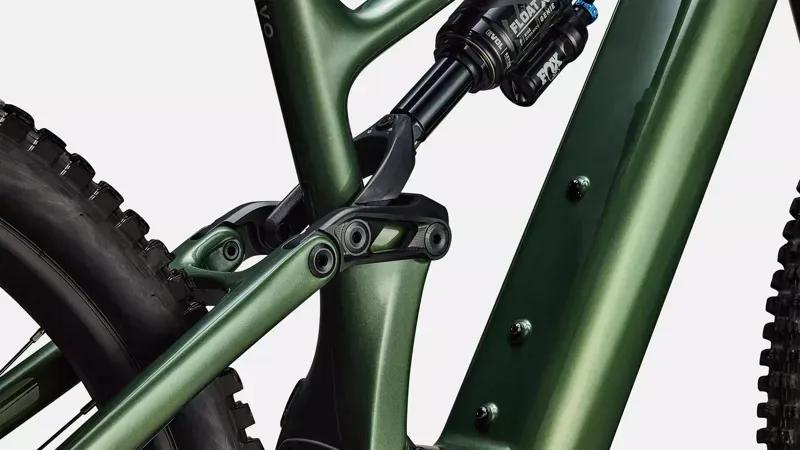

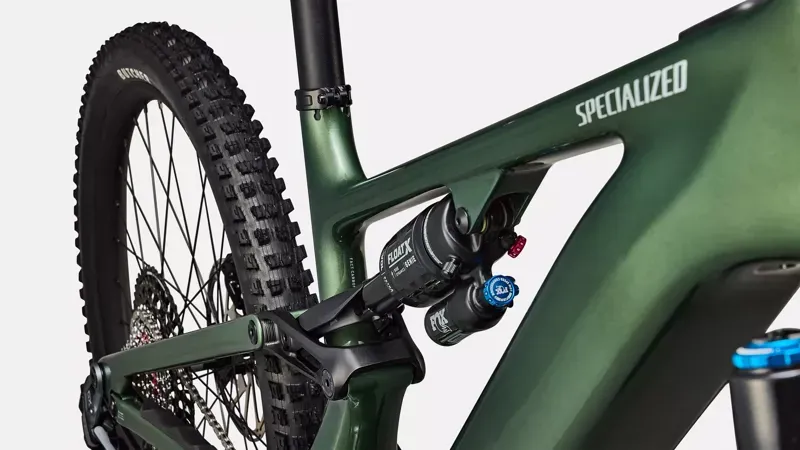

Rear Shock
FOX FLOAT X Performance Elite with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever with 3 setting Open mode tuning range, LSR adjustment
-
Fork
Fox 38 Performance Elite series, 29", Grip X2 damper, 15x110mm axle, 44mm offset, 160mm of travel
-
Front Brake
SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220mm rotor
-
Rear Brake
SRAM Maven Silver, 4-piston caliper, hydraulic disc, 200mm rotor
-
Shift Levers
SRAM AXS POD Controller
-
Rear Derailleur
SRAM GX Eagle Transmission Derailleur
-
Cassette
SRAM GX Eagle Transmission Cassette, 12spd, 10-52t
-
Chain
SRAM GX Eagle Transmission Flattop Chain
-
Crankset
SRAM GX Eagle Crankset, ISIS interface, Integrated Guard, 55mm Chainline, 155mm
-
Chainrings
SRAM 34t T-Type chainring, 104 BCD, steel
-
Front Tire
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 29x2.3"
-
Front Wheel
Roval Traverse Alloy 29", DT Swiss 370, 15x110mm, 28h
-
Rear Tire
Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, 2Bliss Ready, 27.5x2.3"
-
Rear Wheel
Roval Traverse Alloy 27.5", DT Swiss 370 XD freehub body, 12x148mm, 32h
-
Inner Tubes
Standard, Presta valve
-
Stem
Alloy Trail Stem, 35mm bar bore
-
Handlebars
Alloy handlebars, 35mm diameter, 8 degree back sweep, 6 degree up sweep, S2: 30mm rise 780mm width, S3-S5: 40mm rise, 800mm width
-
Grips
Deity Lockjaw grips
-
Saddle
Bridge Comp, Hollow Cr-mo rails
-
Seatpost
PNW Loam post with travel adjust S2: 125mm, S3: 170mm, S4/S5/S6: 200mm
-
SWAT
SWAT internal downtube storage
-
Compliance Certification
As applicable, certified to UL 2849 (e-system) and/or UL 2271 (battery) by UL Solutions and/or SGS. For information on lithium-ion battery standards and regulations in New York City, visit: www.nyc.gov/fdny/batteries
-
Weight
24.41 kg (53 lb, 13.0 oz)
