Explore further with the Merida eSilex 400, combining subtle electric support with a capable gravel frame for smooth, steady riding. Keep rolling.
Explore further with the Merida eSilex 400, combining subtle electric support with a capable gravel frame for smooth, steady riding. Keep rolling.
Merida

Merida eSilex 400 Electric Gravel Bike in Low Key Green/Brown

£2,650.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

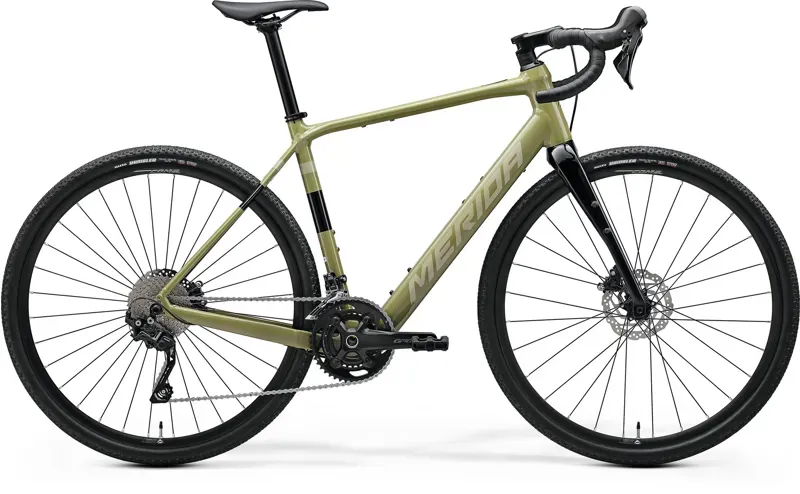

Merida eSilex 400 Electric Gravel Bike in Low Key Green/Brown

Season:2026

Brand:Merida

Code:P-R893

Sometimes a small push is all that's needed to open up a whole new world of exploration.

The Merida eSilex 400 electric gravel bike pairs a sleek, lightweight frame with versatile gravel tyres on 700c rims with the helping hand of the latest MAHLE ebikemotion X30 hub drive motor and a 237 Wh battery, so you can ride further without the faff of planning around your legs.

A fully-featured frame and carbon fork with plenty of mounts makes it ideal for overnight bikepacking trips or smaller adventures, while the smooth shifting and powerful braking of the Shimano GRX groupset with double chainset makes for reliable company, on or off the road.

If you often find yourself eyeing up the bridleway when you're out riding, or you simply enjoy going wherever the mood takes you, the eSilex 400 is worth a serious look.

As Merida e-gravel bikes go, this one sits in a sweet spot: enough motor assistance to take the sting out of long days in the saddle, without ever feeling like a motorbike.

The rear-hub MAHLE X30 system with integrated battery delivers support that feels natural rather than intrusive, and if you're planning a longer stint, an externally mounted 208 Wh MAHLE Range Extender can boost your range further.

For those who want the full specs and more details before committing, it's worth knowing the eSilex comes in both 650b and 700c wheel sizes, so you can pick the setup that suits the terrain you're most likely to tackle.

Merida bikes have a strong reputation for building frames that punch above their price point, and the eSilex 400 is no different. The triple-butted aluminium frame keeps weight down, while the carbon fork and extensive mounting points mean you can load it up for a multi-day tour or keep it stripped back for a weekend blast. Either way, it's ready.

Features:

  • Latest MAHLE ebikemotion X30 hub motor for natural-feeling assistance
  • Triple-butted aluminium frame with built-in 237 Wh battery
  • Sleek, low-profile silhouette and impressively low weight
  • Shimano GRX drivetrain and hydraulic disc brakes
  • Fast-rolling 700c wheels with gravel tyres
  • Multiple frame and fork fixing points for extra carrying capacity
Technical Information
  • Frame
    eSILEX LITE III material: aluminium 700x45C / 700x42C (with fender) / 27,5x47C max. wheelsize 100x9/135x9mm axle standard BSA bottom bracket standard
  • Frame size
    XS, S, M, L, XL
  • Fork
    MERIDA SILEX CF2 carbon max. 700x42C / 700x35C (with fender) / max. 50x650B wheelsize
  • Brakes
    Shimano GRX400 2 piston
  • Rotors
    Shimano RT10 / Shimano RT26 160 mm
  • Headset
    MERIDA 8158
  • Handlebar
    MERIDA EXPERT GRII material: aluminium 400mm (XS-S) , 420mm (M) , 440mm (L/XL)
  • Handlebar stem
    MERIDA TEAM CC III material: aluminium 31.8mm diameter -6° stem angle 80 mm all sizes
  • Grip
    MERIDA ROAD EXPERT
  • Derailleur (f)
    Shimano GRX400
  • Derailleur (r)
    Shimano GRX400
  • Seat post
    MERIDA EXPERT material: aluminium 30.9mm diameter 0mm setback
  • Seat clamp
    MERIDA EXPERT
  • Saddle
    MERIDA COMP SL V-mount
  • Pedal
    VP VPE-891
  • Chain
    KMC e10
  • Crank
    Shimano GRX600 46-30 teeth 170 mm-XS/S/SM/ML, 175 mm-L/XL
  • Freewheel
    Shimano CS-HG50 11-36 teeth 10 speed
  • Bottom bracket
    Shimano RS501 BSA
  • Hubs
    Shimano TC500 100x12mm width front hub 28 spoke holes Centerlock
  • Rim
    MERIDA COMP SL 17mm inner width 22mm height material: aluminium
  • Tyres
    Maxxis Rambler 700Cx40 fold EXO
  • Axles
    MERIDA EXPERT SL
  • Spokes
    Black stainless black nipples
  • Light front
    USB rechargable Chance Good CG-119PG-BLACK(1)
  • Light rear
    USB rechargable Chance Good CG-404RG-BLK
  • Drive unit
    Mahle X30 Drive Unit
  • Battery
    Mahle ix2 237Wh 237Wh
  • Approx. weight
    14.4 kg weighed at frame size M
